Air pushing bag
air pushing bag
Quantity:

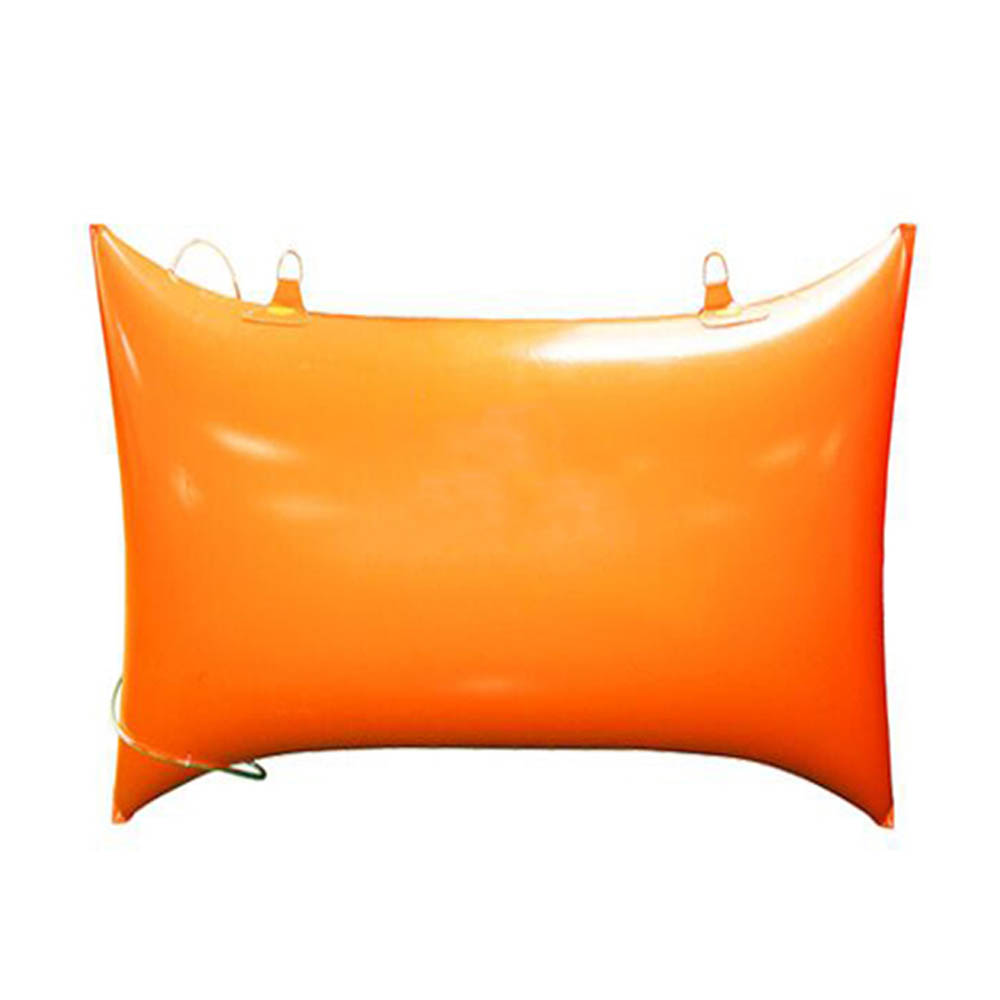

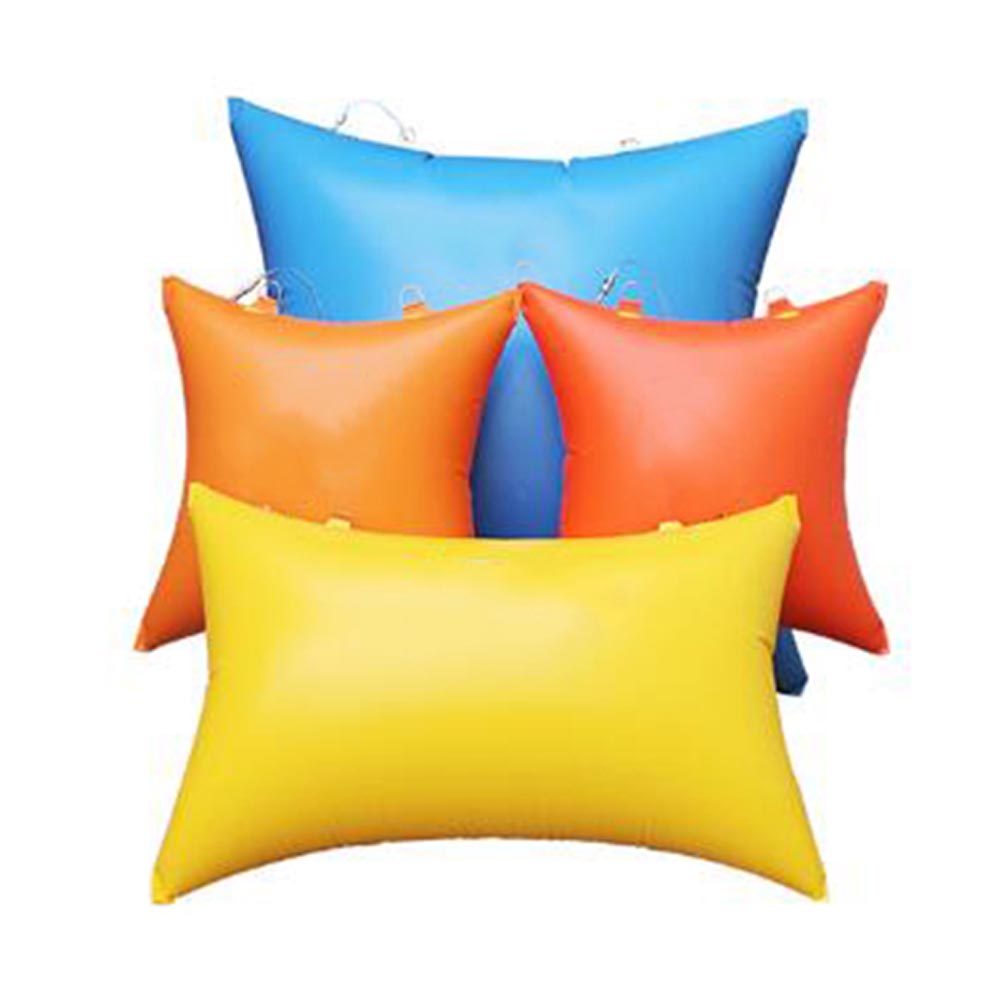

Air pushing bag
Pushing air bag is used to push over block after it was cut by the diamond wire saw machine.
The thickness of our air bag is less than 7 mm. It can be put into the cutting gap easily. After inflation by air compressor, the pushing power of the air bags can reach 20 tons to 300 tons according to different sizes of the pushing bags.
pushing air bag
air bag pushing stone
air pushing bag
Pushing air bag is used to push over block after it was cut by the diamond wire saw machine.
The thickness of our air bag is less than 7 mm. It can be put into the cutting gap easily. After inflation by air compressor, the pushing power of the air bags can reach 20 tons to 300 tons according to different sizes of the pushing bags.
| size(mm) | pushing power(ton) | pushing distance(mm) | net weight | |||
| 1A | 2A | 3A | 6A | |||
| 1000x1000 | 50 | 600 | 3.8 | 3.8 | 4.2 | 3.2 |
| 1000x1500 | 75 | 650 | 5.5 | 5.5 | 5.8 | 5.1 |
| 1000x2000 | 100 | 660 | 6.8 | 6.8 | 7.5 | - |
| 1500x1500 | 115 | 850 | 7.7 | 7.7 | 9.2 | - |
| 2000x1500 | 150 | 940 | 9.8 | 9.8 | 10.8 | 9.4 |
| 2000x2000 | 200 | 1100 | 12.8 | 12.8 | 13.8 | - |
pushing air bag
air bag pushing stone
air pushing bag
