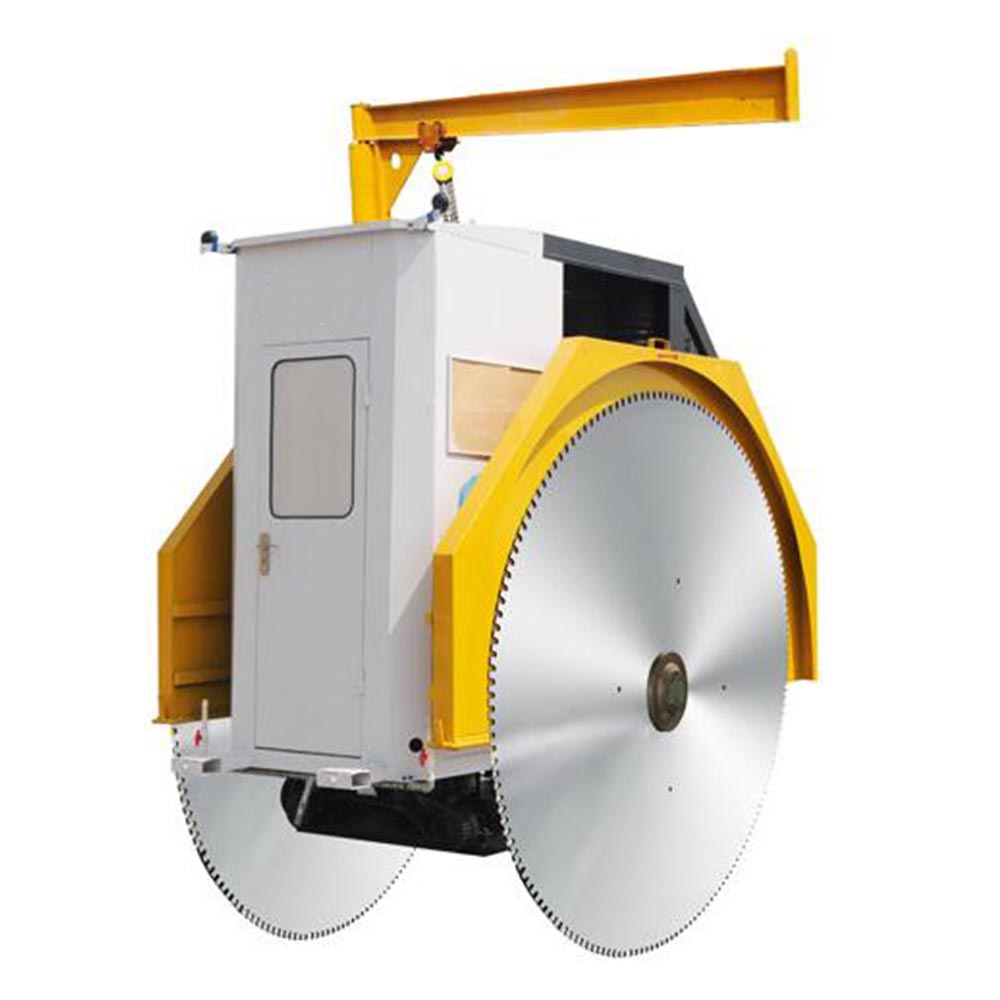

Double blade mining machine
1950
Quantity:
Double blade mining machine
1.It has a compact structure. with mechanical system, hydraulic system and electrical system integrated, with high degree of automation, simple operation and convenient use
2.With super large saw blade, it can process super large rock waste materials, ultra-high mining yield and make full use of mineral resources
3.The unique cylindrical guide rail, hydraulic lifting design and ultra wide chassis make the structure of the whole machine more stable and the service life longer
4.Disc saw blade cutting is safer, more environmentally friendly, lower cost and higher benefit than the traditional blasting mining method
5.The waste surface cut by the saw blade is smoother than any traditional mining method, which greatly reduces the processing waste.
blade mining1
double blade cutting machine
machine mining
double blade
blade double
1.It has a compact structure. with mechanical system, hydraulic system and electrical system integrated, with high degree of automation, simple operation and convenient use
2.With super large saw blade, it can process super large rock waste materials, ultra-high mining yield and make full use of mineral resources
3.The unique cylindrical guide rail, hydraulic lifting design and ultra wide chassis make the structure of the whole machine more stable and the service life longer
4.Disc saw blade cutting is safer, more environmentally friendly, lower cost and higher benefit than the traditional blasting mining method
5.The waste surface cut by the saw blade is smoother than any traditional mining method, which greatly reduces the processing waste.
| Techincal date | Unit | 1950/2450 |
| diameter of blade | MM | φ2200~φ4800*2 |
| scope of cutting depth | MM | 850~2200 |
| scope of cutting width | MM | 1950~2450 |
| power of main-drive | KW | 37~55*2 |
| water consumption | m³/h | 5 |
| machine power | KW | 79.2~115.2 |
| machine weight | KG | 11000 |
| overall dimension | MM | 5200*2100*3600 |
blade mining1
double blade cutting machine
machine mining
double blade
blade double
