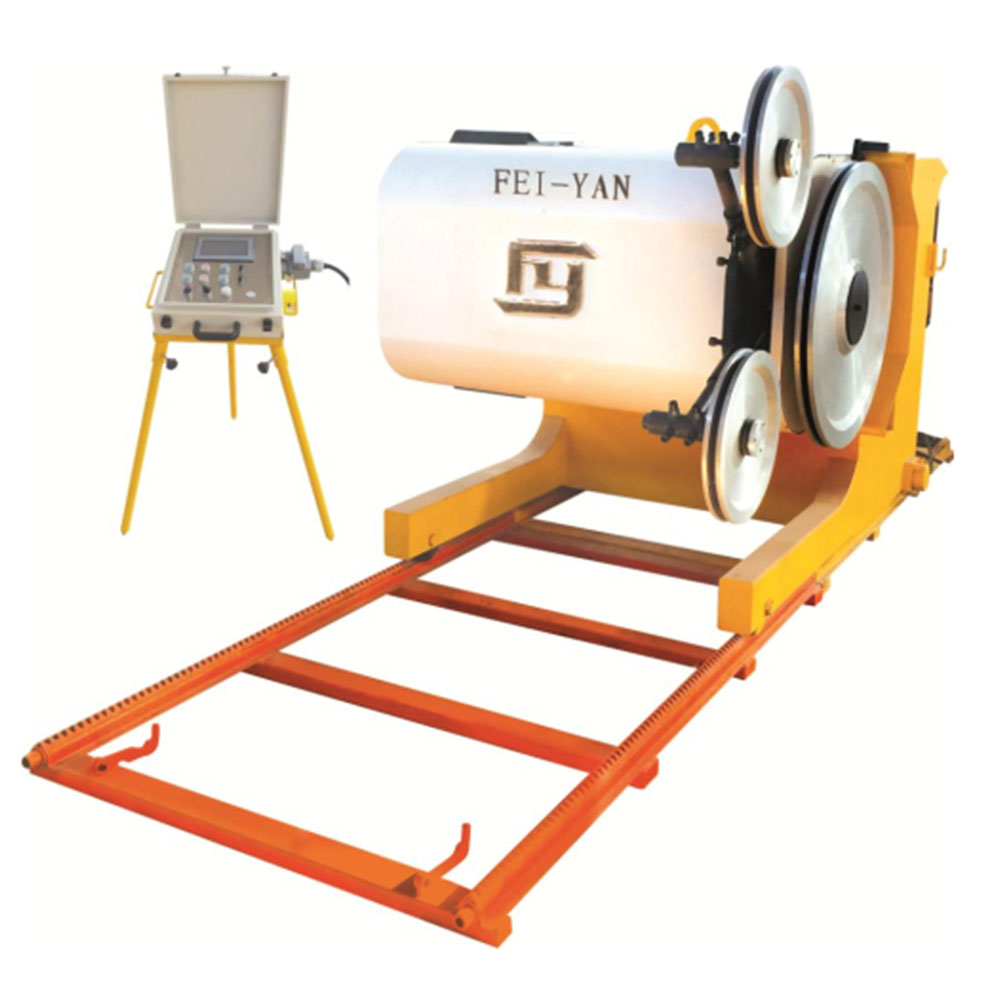

FEIYAN Diamond Wire Saw Machine for Stone Quarry Block Cutting Diamond Rope Saw Machine

QWM45/55/75

Quantity:

Contact Now

add to cart

* User friendly, 5.7 inch Multi-Language Touch Screen for eszy operation.
* Easy for maintenance&repairing, separation of electric parts and machinery parts.
* Well design, High machining Precision machine component.
* Workable on Abrupt Steep slope, thicken and highen tracks and safety casters guarantee a good stability.
* Both Manually and automatically opertation
* Auto working phase function, it can cut automatically according to the cutting data preset.
* Auto Store cutting data and record, cutting length, cutting life, running time, process datafuring the automatic cutting; easy to get the exact cutting performance and reason of machine break-down; convenient to predict the productivity and achieve the cutting efficiency.
* 360° Rotation Main Flywheel, the angel will show on the screen, main flywheel can move sideways automatically.
* Travel limit swith with mechanical touch sensor
* Phase sequence protective function
* Self-protect. The motor will auto showdown when lack of water, over-current happens.

QUARRY WIRE MACHINE
TECHNICAL DATA		MODEL	Photo
		QWM-37/QWM-45/ QWM-55QWM-75
POWER		380V/50HZ
MAIN MOTOR		37KW/45KW/55KW/75 KW
DIAMETER OF MAIN FLYWHEEL		800/1000 MM
RPM OF MAIN FLYWHEEL		0~980
ROTATION OF MAIN FLYWHEEL		360°MANUAL
MAIN FLYWHEEL'S SIDEWAYS MOVEMENT		360°MANUAL
FEEDING MOTOR		0.75 KW
FEEDING SPEED		0~0.4 M/MIN
LENGTH OF TRACK		6 M
WEIGHT		2100KG/2150KG/ 2200KG/2600 KG
Brand	FEIYAN
Application	For stone quarrying
Designs	Made by Professional engineers with good experience in machinery
transducer/ electricity box	Siemens/Schneide (Germany)
Control system	PLC
Our Diamond Wire Saw	1:Diamond wire saw for granite cutting
	2:Diamond wire saw for marble cutting
	3:Diamond wire saw for sandstone cutting
	4:Diamond wire saw for basalt cutting
	5:Diamond wire saw for other stone cutting
