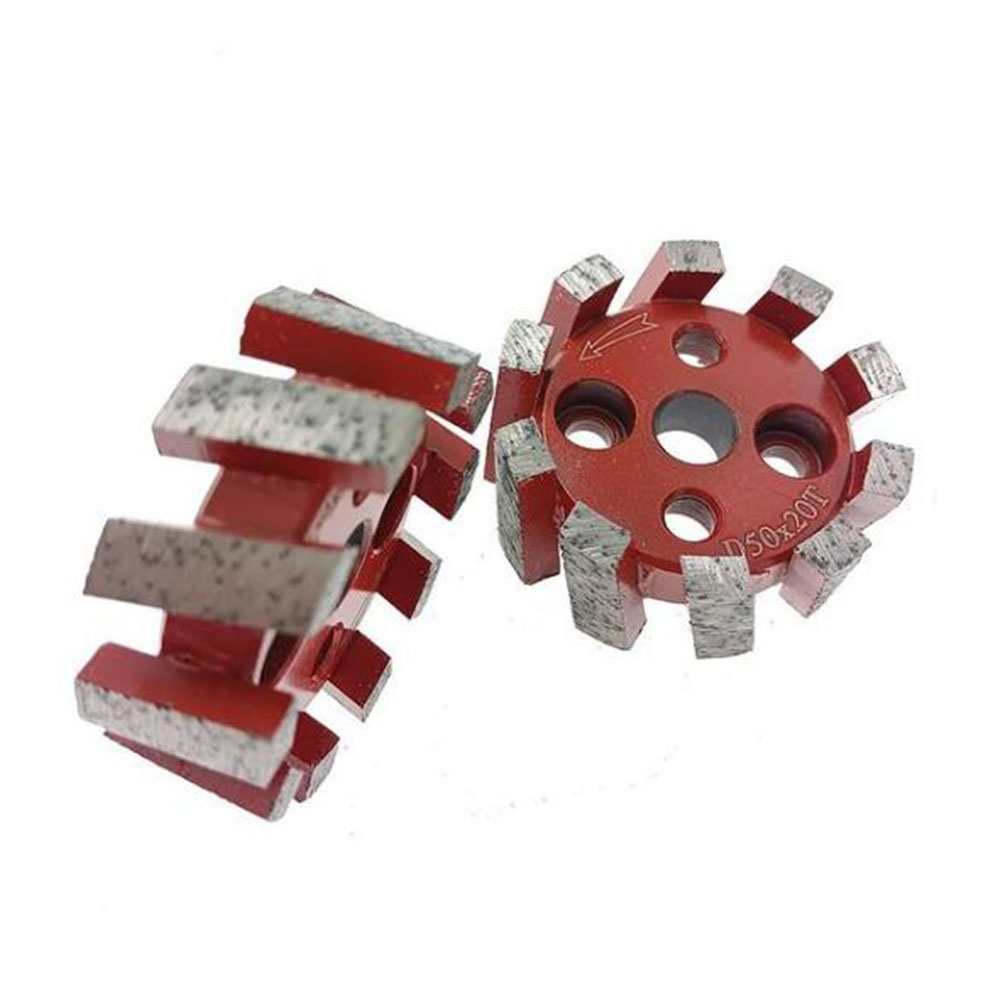

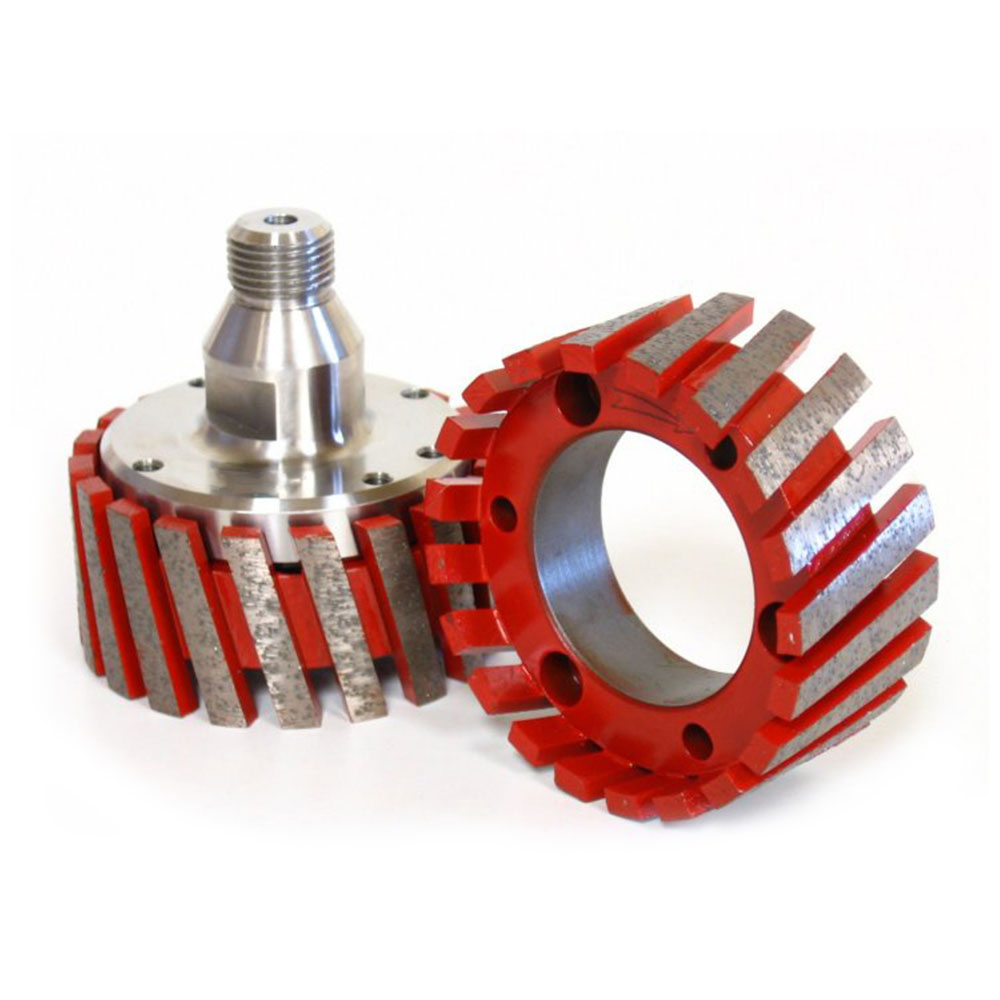

diamond stubbing wheel

Diamond CNC Gauging Wheels Segmented Crown Calibrating Wheels Diamond Stubbing Grinding Wheel Stone Granite Countertop

DSW-1
CNC stubbling wheel is designed to calibrate the thickness of the countertop where it overhangs the cabinets.
This is important because not all slabs are equal thickness which can throw off your seams at install.
Quantity:
Contact Now
add to cart

CNC stubbling wheel Advantages Calibrates about 2 inches in width of the underside of countertop's edge

  • Grinds down the rough surfaces and leaves them smooth to the touch
  • One of the determining factors of a professional countertop installation
  • Feed Rate: 500-1200mm/min
  • RPM: 5000-5500
Specification
Diameter(mm)Segment size(mm) Joint Arbor
Φ10020×7×55/8“-11  or  M14
Φ10030×7×5
Φ10040×7×5
Joint rodD75×78L×1/2"G
Φ8620×7×55/8“-11  or   M14
Φ8630×7×5
Φ8640×7×5
Joint rodD75×78L×1/2"G
Φ5020×7×55/8“-11  or  M14
Φ5030×7×5
Φ5040×7×5
Joint rodD37×90L×1/2"G
